Product Details
＋
NOTE:- We might take 4 to 8 days to ship this product.

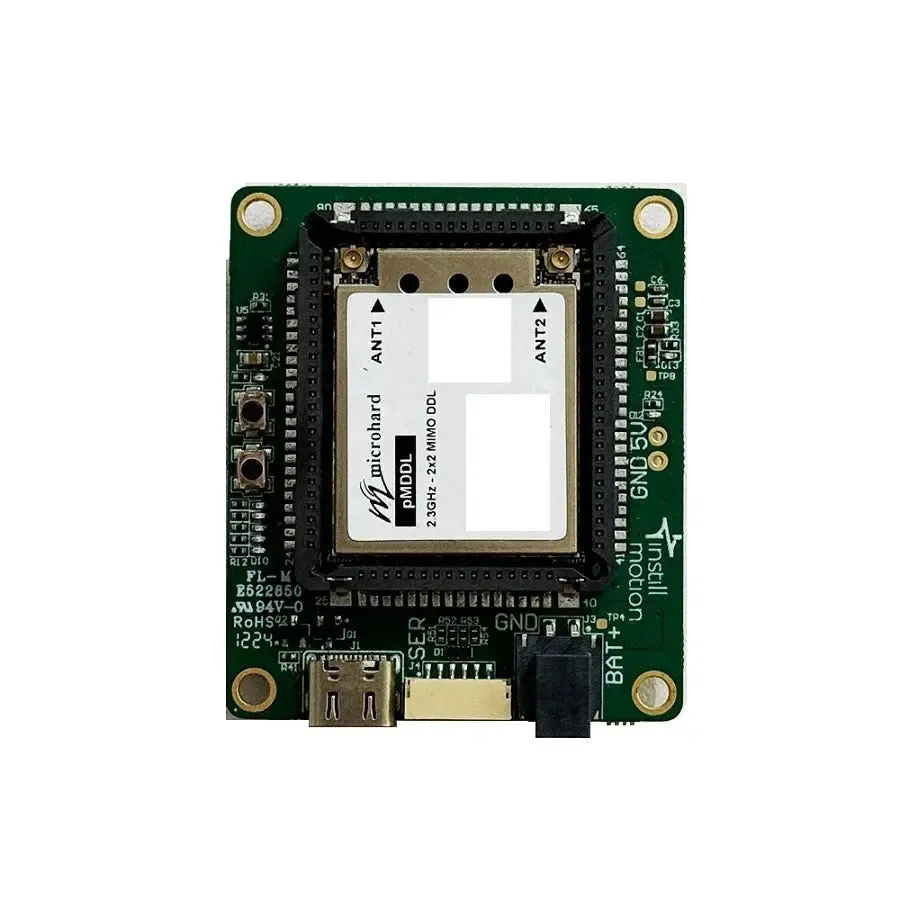

The ISM Microhard IP Radio is a versatile and high-performance communication device designed for reliable and secure data transmission over the Industrial, Scientific, and Medical (ISM) frequency bands. This radio system is ideal for applications requiring robust, long-range, and low-latency communication, such as remote monitoring, telemetry, and industrial automation.
Note: For more technical details go through Datasheet in the attachment section
Features:
- Adjustable, High Power Tx (up to 1W Total) w/ Excellent Rx Sensitivity
- Up to 25 Mbps data rate
- Master, Slave/Remote, Relay (future) operating modes
- Point to Point, Point to Multipoint topology support
- Firewall with ACL Security, Port Forwarding
- Serial Gateway (RS232)
- Dual 10/100 Ethernet Ports
- RSSI LED pins for Antenna Alignments
- Industrial grade operating temperature (-40oC to 85oC)
- Administration via local console, telnet, web browser, SNMP
- Local and remote wireless firmware upgradeable
Package Includes:
1× ISM Microhard IP Radio
Specification:-
| Applicable frequency band |
900 MHz, 2.4 GHz |
|---|---|
| Tx power |
20 dBm – 30 dBm Total (Adjustable) |
| Channel |
4, 8 MHz (Selectable) |
| Encryption |
128-bit AES (Optional 256-bit |
| Error Detection/Control |
CRC, ARQ |
| Input Power (W): |
5 to 15 watts. |
| Interfaces |
Ethernet (RJ45), RS-232/RS-485 |
| Network protocols |
TCP/IP, UDP |
| Antenna Connector |
SMA or N-type |
| Operating Temperature (°C) |
-20°C to 60°C |
| Shipping Weight | 0.0 kg |
