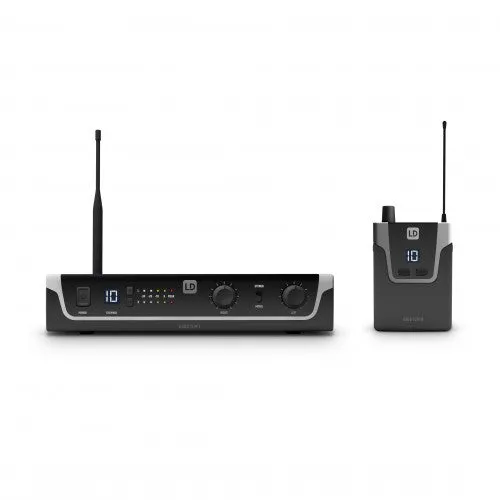

We have developed the wireless U300 in-ear monitoring systems for unlimited freedom of movement on the stage with perfect in-ear monitor sound at all times. Developed in Germany, their clear, modern design and straightforward operation make them the perfect choice – not just for beginners. Their reliable range of up to 100 m and their low-reaching frequency band of 50 Hz to 16 kHz ensure professional performance. U300 in-ear sets are available for operation in 5 frequency bands: 584 MHz - 608 MHz, 655 MHz - 679 MHz, 823 MHz - 832 MHz 863 MHz - 865 MHz, 470 MHz - 490 MHz or 514 MHz - 542 MHz. Six systems can be used simultaneously in each case.

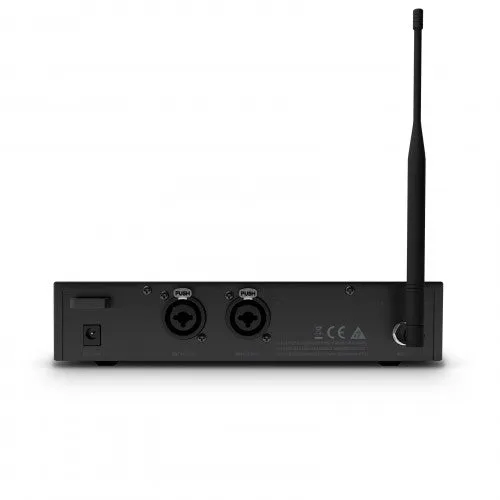

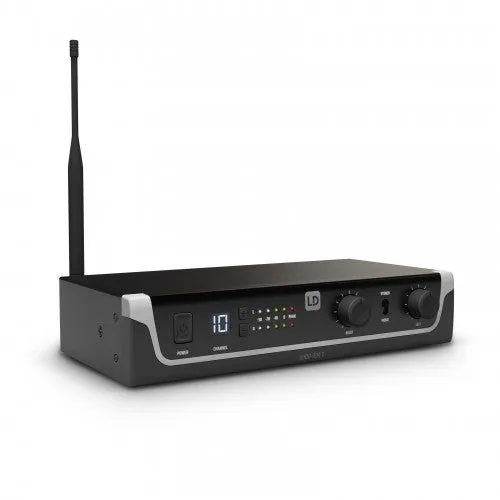

The U300 in-ear transmitters offer a choice of 12 transmission channels and an RF transmission power of 10 mW. They can also be operated in mono or stereo mode. Combo sockets serve as symmetrical XLR and asymmetrical 6.35 mm jack inputs. Left and right input levels can be controlled separately, while two LED chains indicate audio signal strength.

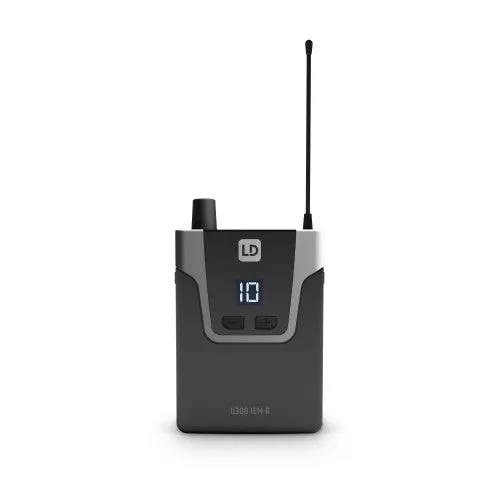

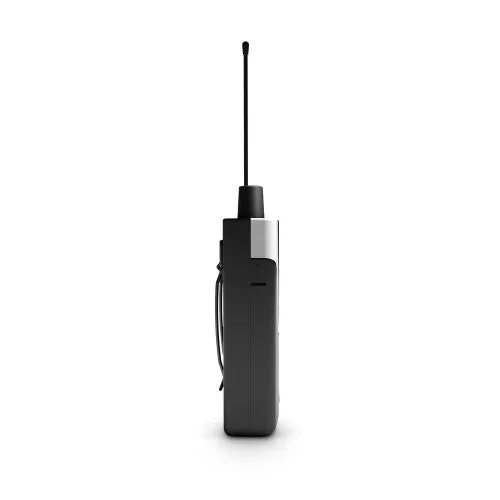

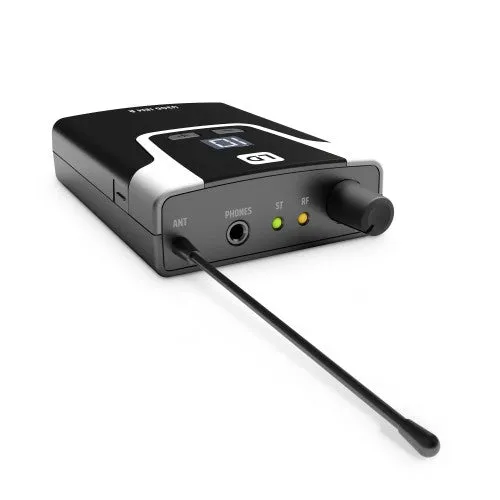

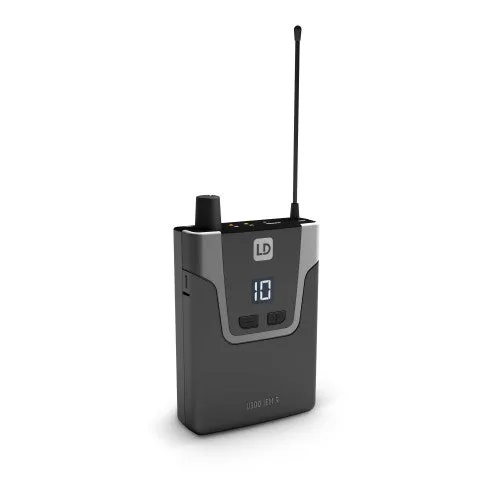

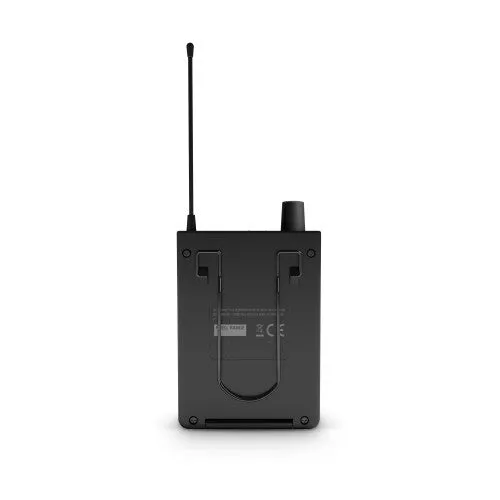

The U300 bodypack receiver has a mini jack socket to connect the earphones as well as displays for channel, stereo mode and low battery status. Running on two AA batteries, it has an operating time of 10 hours. A practical controller allows individual adjustment of the monitoring volume during performance. 19" rack assembly kit included.

General
Product type In-ear Monitoring
Type Set
Transmission frequency range 470 - 490 MHz
Weight 1,51 kg
LDU3047IEMR - LD Systems U304.7 IEM (USA version) Receiver (only available in the USA)
Product type In-ear Monitoring Accessories
Type Receivers
Transmission frequency range 470 - 490 MHz
Channels 12
Transmission method FM, mono/stereo
Frequency response 50 - 16.000
Total Harmonic Distortion (THD) 0.25 %
Audio output 3.5 mm TRS
Minimum connected impedance 16 Ohm(s)
Max. audio output level 73 (@ 33 Ohms load capacity) mW
Antenna connector Fixed to housing
Controls volume control
Indicators RF (LED)
Operating voltage 2 x 1.5 V AA
Operating time < 10 hours
Width 64 mm
Height 103 mm
Depth 24 mm
Weight 0,085 kg
Features incl. batteries

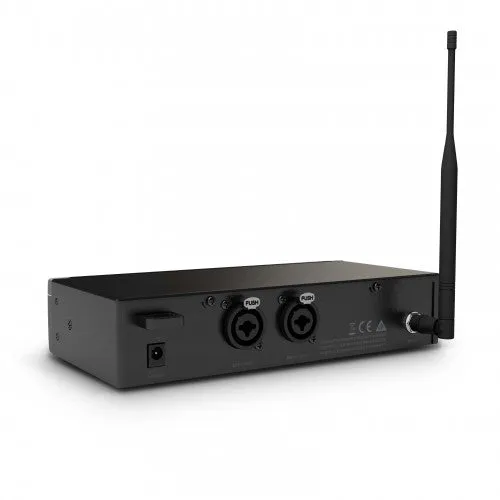

LDU3047IEMT - LD Systems U304.7 IEM (USA version) Transmitter - 470 - 490 MHz (only available in the USA)
Product type In-ear Monitoring Accessories
Type Transmitters
Transmission frequency range 470 - 490 MHz
Channels 12
Modes of operation mono/stereo
Transmission method FM, stereo
Frequency response 50 - 16.000
Rated HF output power 10 mW
Total Harmonic Distortion (THD) <0,5%
Signal-to-noise ratio 90 dB
Dynamic range 88 dB
Antenna connector BNC
Controls Power On/Off
Inputs 2
Input connectors XLR
Indicators multifunction LC display
Input impedance (kOhms) 8.5 kOhm
Operating voltage 12 - 18 V DC
Input sensitivity -4.5 dbu V
Width 212 mm
Height 43 mm
Depth 123 mm
Power consumption 1.7 W
Weight 0,66 kg
Accessories (included) Power supply
LD Systems U304.7 IEM In-Ear Monitoring System (470-490 MHz)
  • DefaultTitle

$ 85.37

$ 65.67
