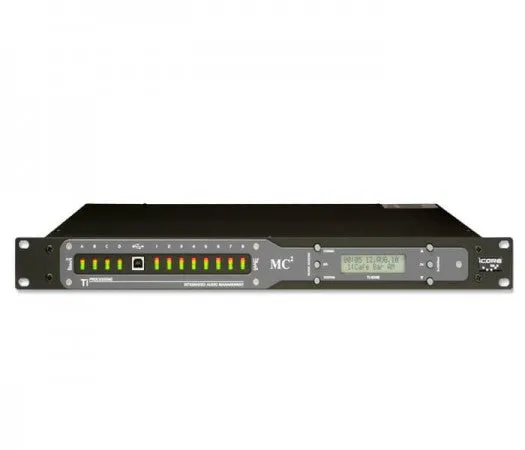

Offering full matrix mixing and a palette of EQ functions to satisfy even the most demanding application, the Ti1048 doesn’t compromise your processing. 24-bit high end converters, coupled with a 96k sample rate ensure a bandwidth in excess of 30kHz and a dynamic range of over 112dB.
XTA’s world class limiters, offering unrivalled transparency (even when being driven hard) give peace of mind when configuring a system to “set and forget”, guaranteeing it will always sounds its best and be safe. Set-up of timed preset recalls, along with full real time monitoring and control offer complete peace of mind. Then just unplug the USB and you’re good to go!
A brand new software package, iCore, has been developed to work alongside all Ti Series components (amplifiers, breakout boxes, processors) and provides a centralised point for all control and monitoring. Via either the front USB or an RS485 link, the Ti1048 is entirely configured under iCore."
Gain Ranges 6dB to -40dB in 0.1dB steps (Input) | 15db to -40dB in 0.1dB steps (Output) |
Gain Ranges 6dB to -40dB in 0.1dB steps | plus mute (Matrix) |
Parametric Filter Suite | 8 bands per input, 9 Bands per output |
Filter Gain | 15dB to -30dB in 0.1dB steps |
Freq. Range | 19.7Hz - 32kHz in 1/36 octave steps |
