Product Details
＋

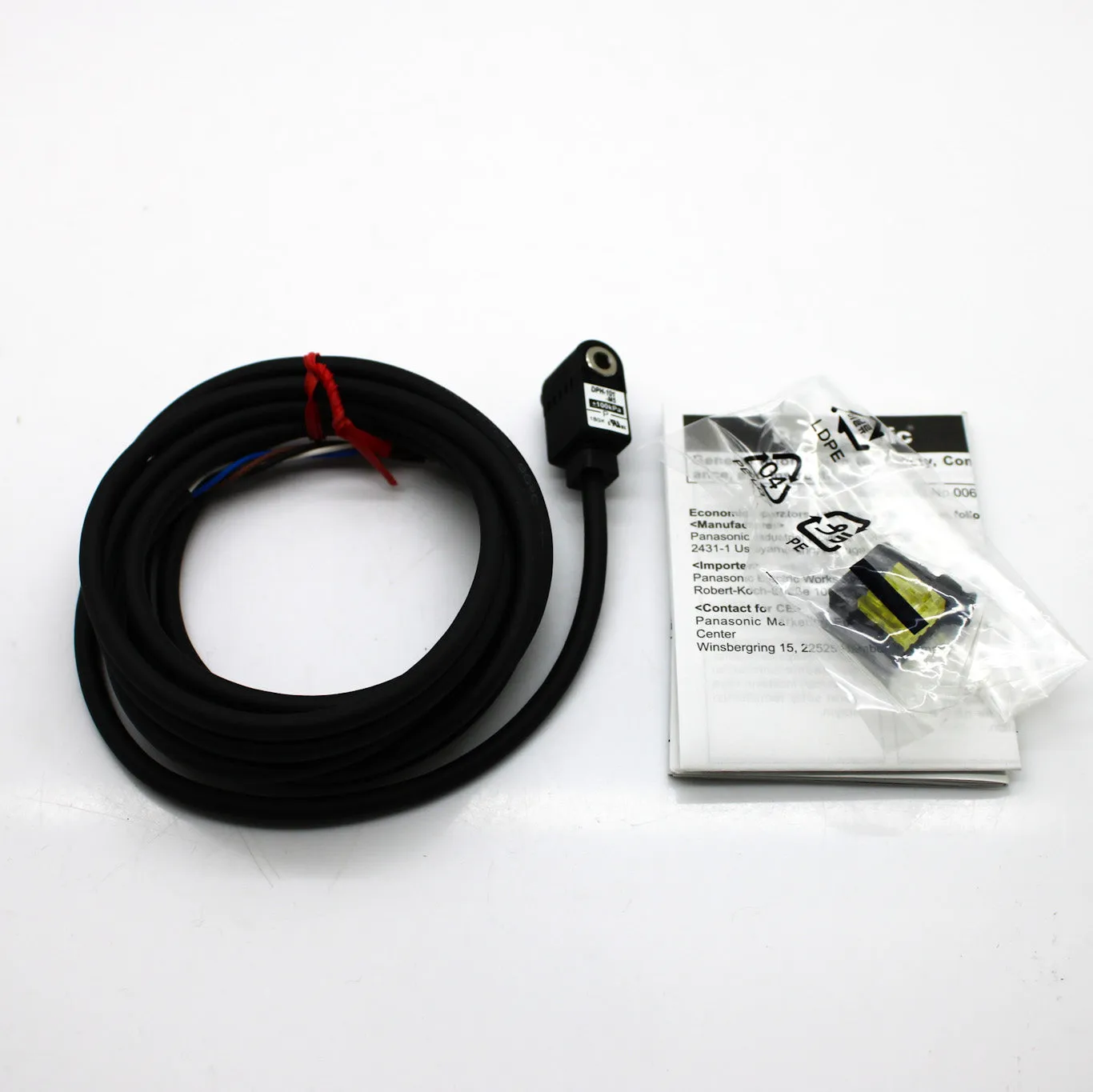

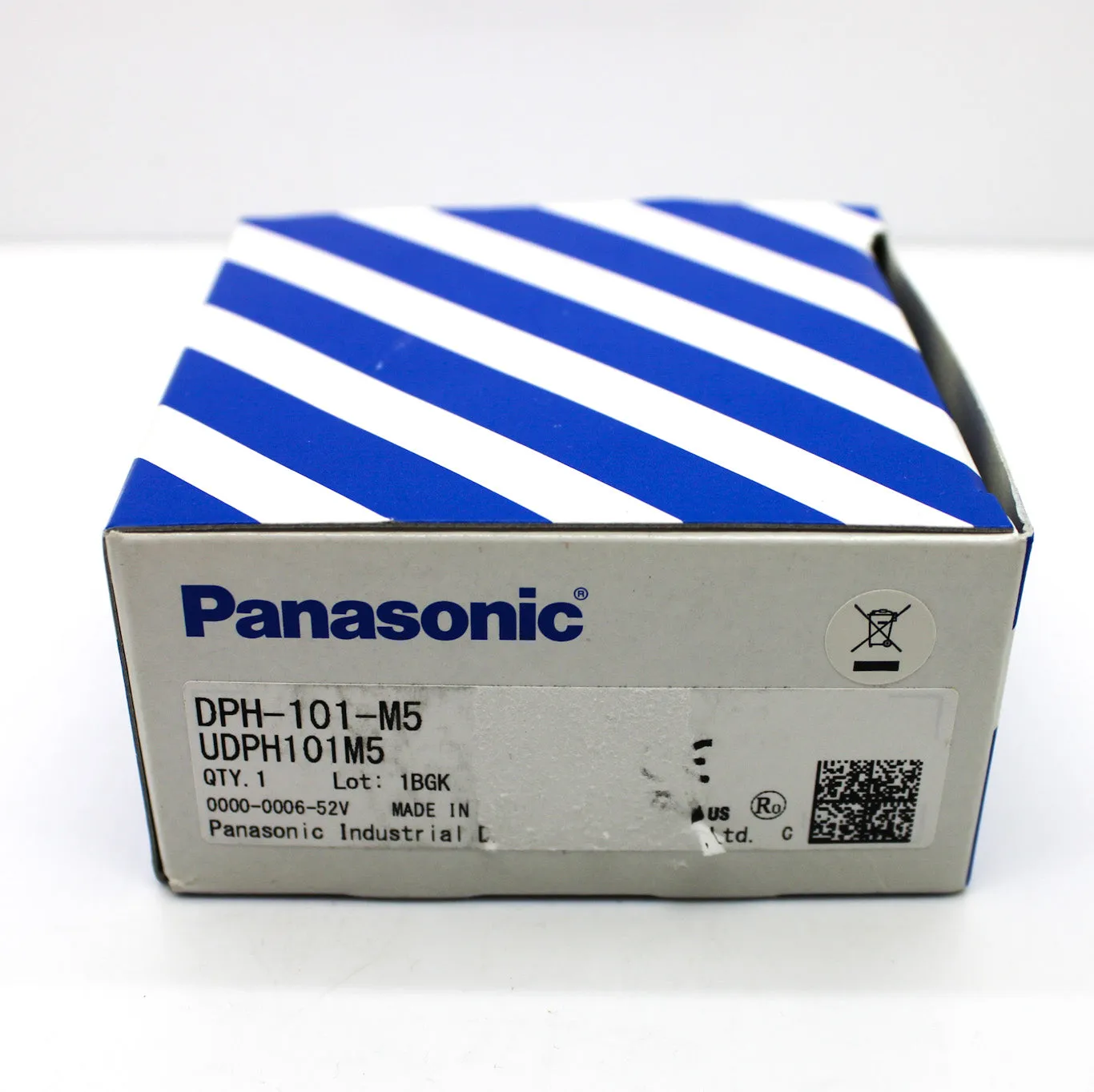

This is a Panasonic Head-Separated Dual Display Digital Pressure Sensor DPH-101-M5. It comes as pictured and does not include any additional parts or accessories.
Specifications:
- Accuracy: /-0.5 %
- Maximum Pressure Measured: ±72.52 (±500) PSI (kPa)
- Operating Pressure: 14.5 PSI
- Operating Temperature: 0 ~ 50 C
- Output: 1-5 V
- Output Type: Analog, Voltage
- Package Type: Module
- Port Style: Threaded
- Series: DPH-100 Series
- Supply Voltage: 12-24 VDC
- Termination: Connector
- Type: Compound
