Product Details
＋

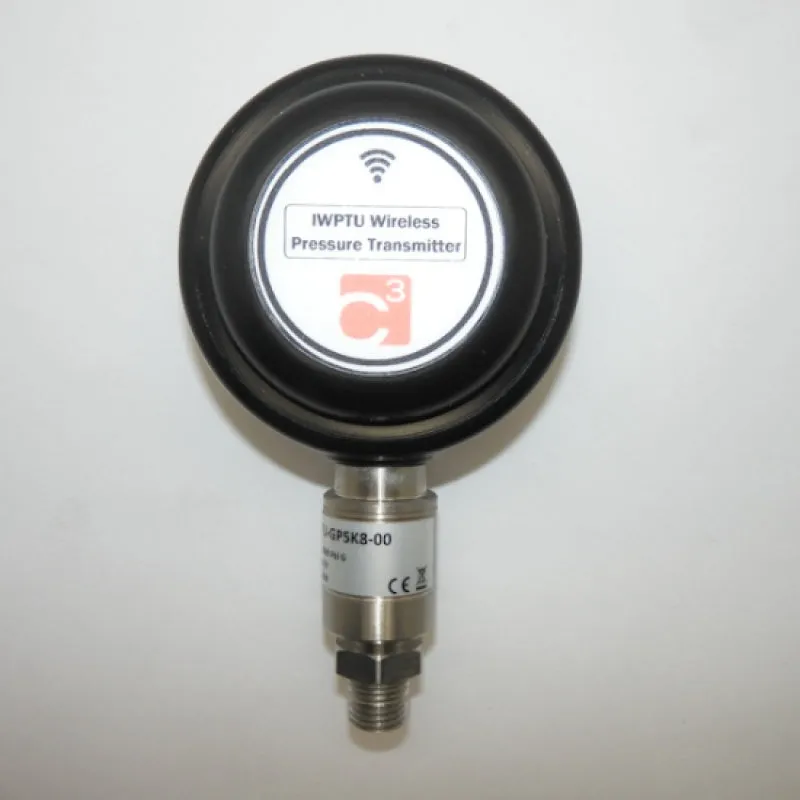

The IWPTU Wireless Pressure Transducer is a cost effective replacement to a traditionally wired pressure transducer that offers the advantages of a low-cost installation in inaccessible and expensive installation environments. It is easily paired to the compatible IWR family of single- or five-channel wireless receivers thus offering a "plug and play" solution to your pressure measurement applications. The instrument uses a piezo-resistive ceramic sensor mounted within a stainless steel housing giving excellent media compatibility for the harshest of applications.
Specifications:
- Operating Pressure: 0 to 5800 PSI
- Battery Type: User replaceable Lithium C cell
- Pressure Housing: 316 Stainless Steel
- Transmission Frequency: 2.4 Ghz
- Transmit Power: 18 dBm
Features:
- • Suitable for use with liquids and gases
- • Pressure ranges from -15 to 5800 psi gauge
- • Up to 1640 ft line-of-site range (depending on receiver)
- • Piezo-resistive thick film ceramic sensor with stainless steel body
- • Five-year battery life at 10 second transmission update rate
- • Simple DIL switch pairing with the single or five channel receiver
- • Single or five channel receivers available
- • User-selectable transmission update rates
- • User-selectable 1-5V or 4-20 mA receiver outputs
